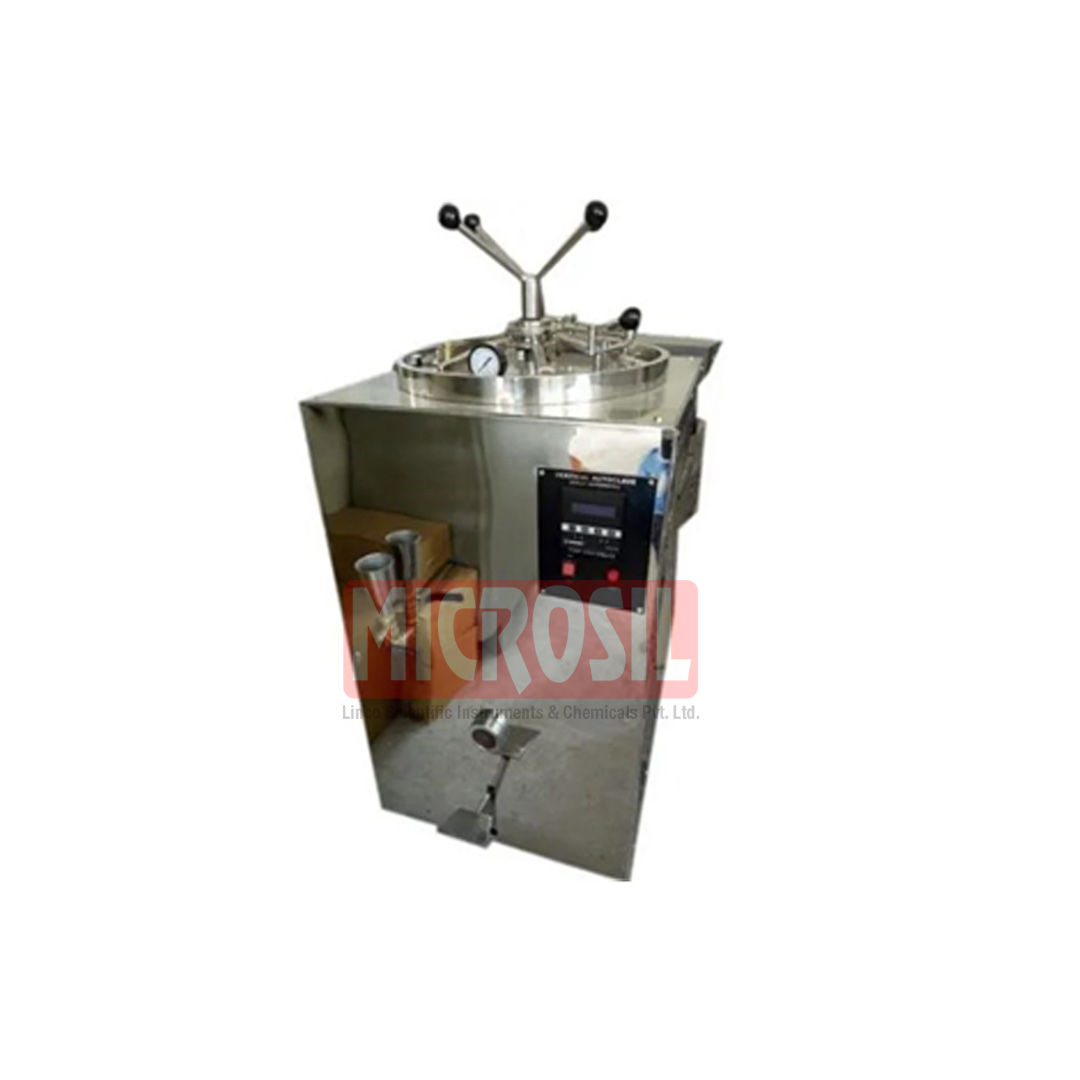

VERTICAL SQUARE BODY AUTOCLAVE (LIC- 131)

INCLUDING

  • Water level indicator.
  • Stainless steel basket.
  • Vacuum breaker

CONSTRUCTION

FULLY S.S SQUARE BODY MODEL
Inner chamber SS 304
Outer chamber SS 304
Lid SS 304
Gasket Silicon joint less
Ring SS 304
Leg stand SS 304
Heater SS 316
Socket & Pipe Line SS 304



SIZE(INCHES) 10 *18 12 *20 14 *22 16 *24 18 *24 22 *30
SIZE (MM) 250*450 300*500 350*550 400*600 450*600 550*750
CAPACITY 22 liters 40liters 50liters 78liters 98liters 152liters
LOAD 1.5kw 2.0kw 3.0kw 4.0kw 4.0kw 5.0kw
ALL S.S 304 P.O.R P.O.R P.O.R P.O.R P.O.R P.O.R



FULLY AUTOMATIC PID PURGING SYSTEM
Automatic low water cut off system
Automatic Pressure control switch
Control: ON/OFF / T.P.

Input: PT-100 Pressure Sensor for chamber.

Purging Range: User Settable.

Sterilization Time: User Settable.

Post Sterilization-Drying Time: User Settable.

Boiler Control: User Settable.

Buzzer: High / Low Alarm/Process End.

Pressure Display.

Sterilization cycle process inbuilt
