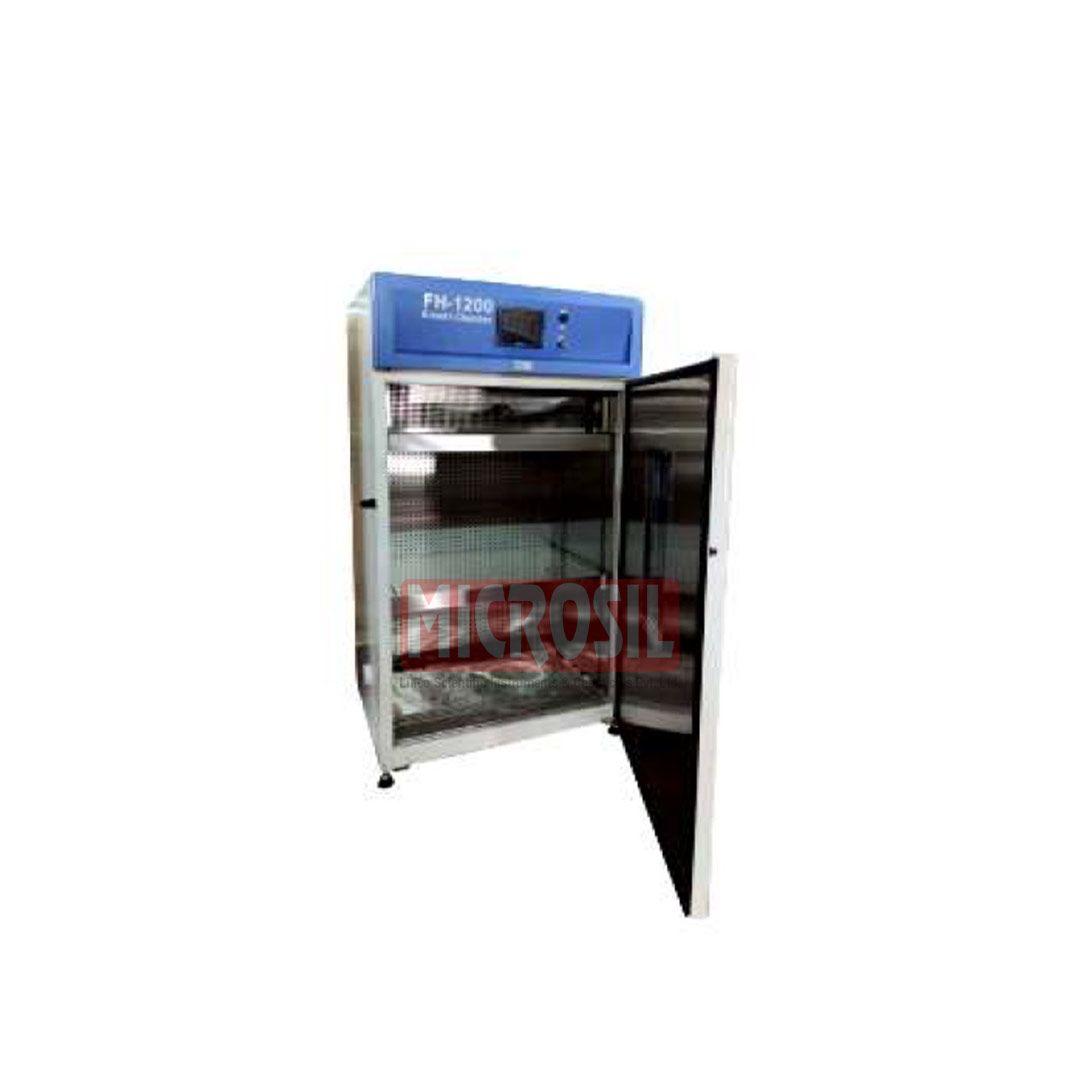

Plant Growth Chamber

Sizes: – Capacity in cft. Capacity

  • 570x875x550mm Ft 280ltrs.
  • 775x900x775mm 20Cu.Ft
  • 835x1200x825mm FT. 840ltrs.
  • 900x1720x800mm 8Cu.FT. 1282ltrs.

Description:

PLANT GROWTH CHAMBER

Useful to conduct experiments on plant growth in controlled environmental conditions. Double wall construction, inner made of anodized aluminium or stainless steel sheet and outer made of thick mild steel sheet duly finished in stoving enamel paint. The gap is filled with glass wool for insulation of temperature. In addition to a double walled door a full view clear acrylic door is provided for observation in chamber without opening it to avoid disturbance to the inner conditions. Instead a double glass window can be provided in the main door. Adjustable perforated shelves of stainless steel are provided. Temperature range 5oC to 50oC + 1oC is controlled and indicated by a dual electronic digital temp. Controller-cum- indicator. Humidity control from 55% to 95% + 3% RH is attained by a humidistat and created in a stainless steel water reservoir set below the chamber and heated by immersion heater. A 0-24 hour timer is also provided. The control panel is provided with indicator lamps, controls etc.equipment to work on 220V AC 50Hz single phase. Supplied with cord & plug. Arrangement for fluorescent illumination and daylight has also been provided.
