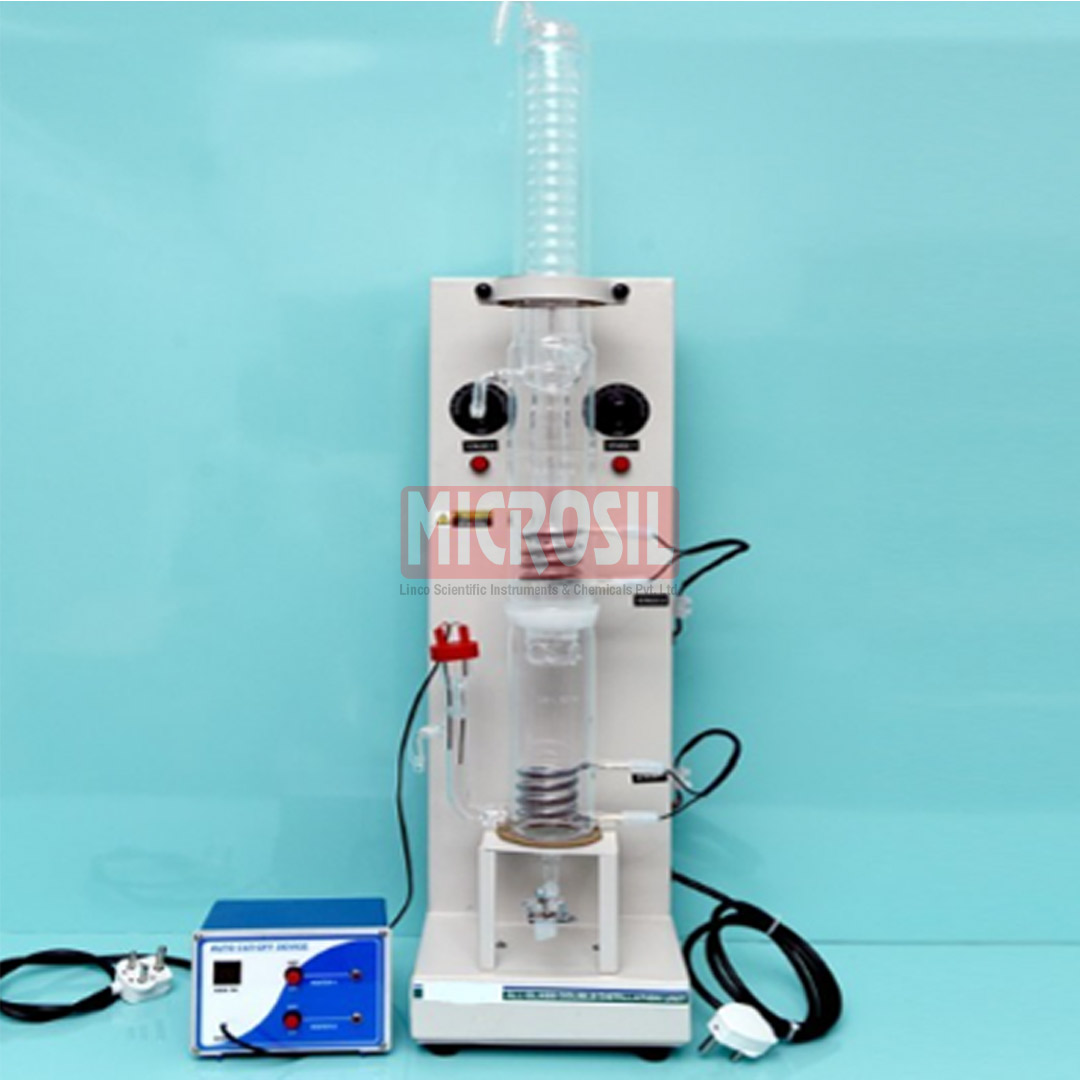

All Quartz Double Distillation

Category:

It has been designed keeping in view customer requirement and easy service bility of the equipment. All Quartz Double Distillation consists of demountable upper lower boiler the lower boiler has a built in quartz boiler with a cup on top.

The upper boiler has a built in quartz coil and condensing unit which is mounted on the boiler with the help of ball and socket joint Double walled condenser ensures separate condensing of vapors coming from the two two boiler using a single cooling circuit.

The unit in mounted on a specially designed power coated stand and is also provided with Safety Control Unit.

This new dual – safety cut off has been designed for better and accurate control of the distillation unit. It has been incorporated with advanced microprocessor based electronic circuitry. This has the latest latest electronic technology that has been introduced by our company which gives an easy user machine interaction. The alpha numeric LCD which has been used shows all messages that correspond to the running of the machine. Also there is alarm system which beeps as and when user attention is required



Special advantage of Demountable Model

  • Easy cleaning of the first boiler since it can be dismantled from the assembly.
  • Ease of interchange bility as it is provided with Ball & Socket joint.
  • Boiler & condenser have larger boiling space resulting in balanced boiling & improved quality of distillate.
  • Compact and easy to install.



DOUBLE DISTILLATE QUALITY

Parameters Values
Specific Conductivity 0.1-0.5 ms/cm
Biological Activity Pyrogen Free
Organic Matter Nil
Total Solids 0.1 mg/ltr
Silica <0.01mg/ltr
Specific Conductivity 0.1-0.5 ms/cm



TECHNICAL SPECIFICATIONS

Model No. Output Capacity (Approx) Power Rating (Total) Cooling Water Consumption
MIC 0001A 1.5 ltr/hr 3 KW 50ltrs/hr (Approx)
MIC 0001B 2.5 ltr/hr 5 KW 70 ltrs/hr (Approx)
MIC 0001C 3.5 ltr/hr 7KW 90 ltrs/hr(Approx)
MIC 0001D 4.0 ltr/hr 8 KW 120 ltrs/hr (Approx)
MIC 0001E 5.0 ltr/hr 9KW 150 ltrs/hr (Approx)
